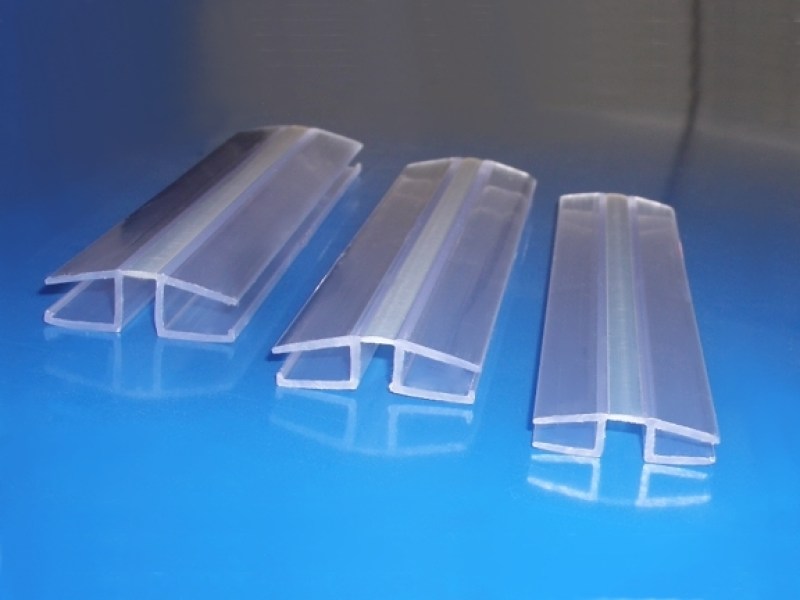

49" Slide on Hinge - with Clear Urethane Center

We also have this in a 72" length.
Click here.

Material: Clear PETG with semi-clear Urethane center.

This has UV protection and can be used outdoors.

• “Applications for Slide-On Plastic Hinges”

  Common uses (display cases, enclosures, retail fixtures)

• “Why Choose ABC Plastics Slide-On Hinges?”

  Benefits (durability, easy installation, outdoor use)

  Time Saving: Completely eliminates the need to solvent bond hinge to lid or door.

•  “Available Sizes: 49” & 72” Slide-On Hinges”

  Attachment: Choose from 3 sizes that mounts to most any hard material that is 1/8" or 3/16" or 1/4" (3.175mm, 4.5 mm or 6 mm) in thickness by sliding the hinge along the edge of plastic.

  Size Assembled: 1-1/4” W x 49” L (32 mm x 1829 mm)

Our slide-on acrylic hinges are designed for quick installation on plastic panels of various thicknesses, making them perfect for display cases, retail fixtures, and custom enclosures. Manufactured from clear PETG with a semi-clear urethane center, these hinges offer UV protection for both indoor and outdoor use.

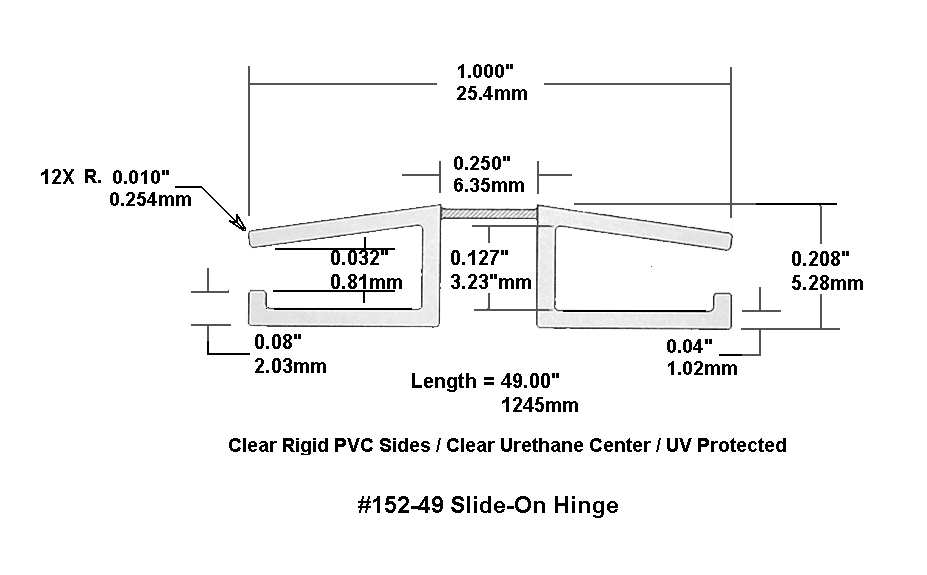

Below is #152-49

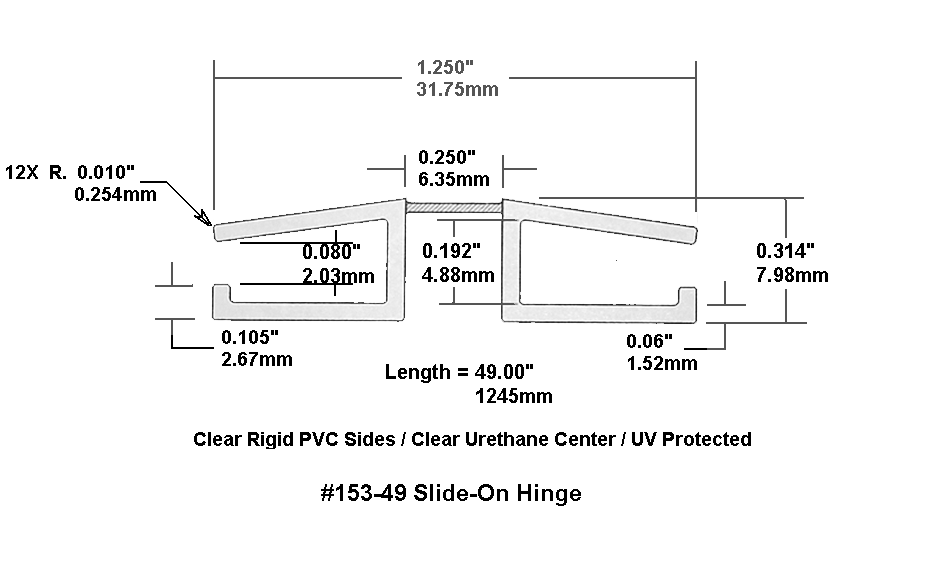

Below is #153-49

Below is #154-49
